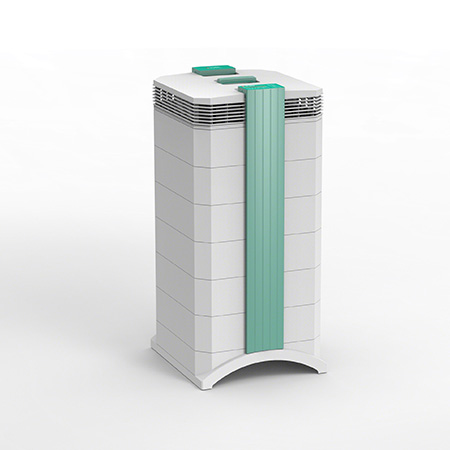

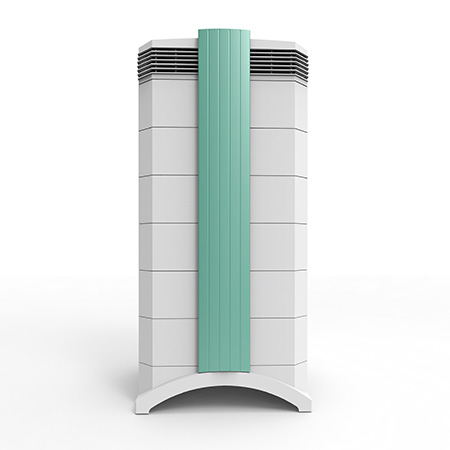

Cleanroom H13™

Cleanroom H13™

OVERVIEW

Microbiological management.

Airborne viruses, bacteria and other microbes can be controlled with the Cleanroom H13™.

ENQUIRE NOW

Proven performance against ultrafine particles

Ultrafine particles are smaller than 0.1 microns. By sheer number, about 90% of all airborne particles are this size. The primary source of ultrafine particles is combustion from motor vehicles, refineries, industrial plants and even cooking. Viruses are also ultrafine particles. The small size of ultrafine particles enables them to be easily inhaled, deposited into the lungs and absorbed into the blood. They have been linked to heart attacks, strokes, asthma and even cancer.

Manufacturers of ordinary air filtration systems claim only that their systems filter particles larger than 0.3 microns. IQAir is different. IQAir’s HyperHEPA filtration is proven and certified to filter up to 99.5% of all particles down to 0.003 microns – the smallest particles that exist. Independent testing by laboratories and government agencies verifies the effectiveness of IQAir technology against ultrafine particles. When it comes to protection against ultrafine particulates, IQAir is the proven choice.


Antimicrobial filters kill on contact

Best media, superior performanceWhen the cleanest air possible is required for medical and laboratory applications, every incremental gain in air quality is significant. In addition to IQAir’s unequaled HyperHEPA® filtration technology, both the PreMax™ pre-filter and the HyperHEPA H13 particle filter in the Cleanroom Series feature antimicrobial media. These antimicrobial filters reduce microbial colonization and help preserve the integrity of the filtration media.


Up to 100x more filtration than standard HEPA

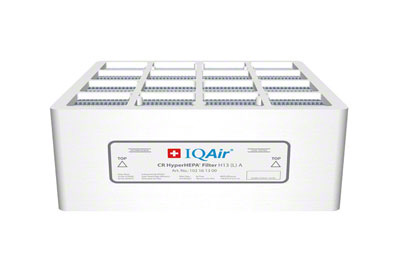

100x more filtrationThe Cleanroom Series features 7.5 m2 (surface area) of IQAir’s HyperHEPA H13 micro-pleat filtration media with solvent-free separators. IQAir’s HyperHEPA filtration is proven to stop the smallest, most harmful particles in the air all the way down to 0.003 microns – the smallest particles that exist. That includes viruses, bacteria, pollution particles and other contaminants. IQAir uses nanofiber technology and innovative design to stop particles up to 100x smaller than what conventional HEPA air filters are capable of.


Certified before it leaves the factory

Certified performanceIQAir individually tests each and every Cleanroom Series air purifier at the factory to ensure that the performance of each system meets published specifications. Electronic laser particle counters sample the air at the air purifier outlet to verify that the system is performing to efficiency standards in reality, not just theory. If the system is not performing as stated, it is not shipped. The results of each test are detailed in a hand-signed Certificate of Performance, which is shipped from the factory in the box with every Cleanroom Series system.


New Edition Technology

New Edition technologyCleanroom Series air purifiers feature IQAir New Edition technology that makes them more powerful than previous generations. Compared to previous generations, New Edition systems deliver up to 26% more clean air, 49% longer filter life and 7% less sound on top fan speed. At the heart of the New Edition systems is the IQAir New Edition fan; the most powerful fan ever used in a commercial stand-alone air purifier. New pleating patterns and other technological advances in New Edition filters also contribute to increased airflow and longer filter life of New Edition systems.


Maximum particle filtration

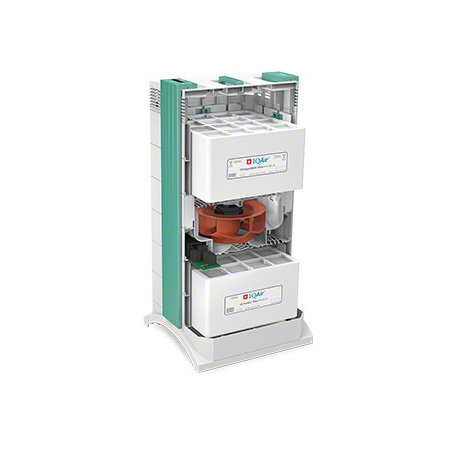

The Cleanroom Series provides maximum control of airborne particulates. It is designed for cleanrooms, labs and other environments up to Class 100. Air is drawn in at the bottom of the system and into the powerful antimicrobial high-accumulation, high-capacity PreMax pre-filter. This is an industrial ASHRAE class F8 micro-pleat filter with 7.0 m2 of surface area. More than 55% of all particles 0.3 microns or larger are filtered at this point. The New Edition fan powerfully draws air through the pre-filter and into the IQAir HyperHEPA antimicrobial hospital-grade filter. The HyperHEPA filter also features 5.5 m2 of surface area, certified and proven to filter 99.97% of all particles 0.3 microns and larger and 99.5% of all particles down to 0.003 microns in diameter. These are the smallest particles that exist. Bacteria, viruses, combustion particles and virtually any other particles in the air are efficiently and effectively removed by the Cleanroom Series.

Proven performance against ultrafine particles

Ultrafine particles are smaller than 0.1 microns. By sheer number, about 90% of all airborne particles are this size. The primary source of ultrafine particles is combustion from motor vehicles, refineries, industrial plants and even cooking. Viruses are also ultrafine particles. The small size of ultrafine particles enables them to be easily inhaled, deposited into the lungs and absorbed into the blood. They have been linked to heart attacks, strokes, asthma and even cancer.

Manufacturers of ordinary air filtration systems claim only that their systems filter particles larger than 0.3 microns. IQAir is different. IQAir’s HyperHEPA filtration is proven and certified to filter up to 99.5% of all particles down to 0.003 microns – the smallest particles that exist. Independent testing by laboratories and government agencies verifies the effectiveness of IQAir technology against ultrafine particles. When it comes to protection against ultrafine particulates, IQAir is the proven choice.


100% Healthy technology

IQAir’s HyperHEPA filtration technology is the safest, healthiest, and most effective way to clean the air. The Cleanroom Series particle filters work together to remove more than 99.97% of all airborne particles (0.3 microns and larger) without using unsafe or unproven technologies such as ozone generation, ionization, or ultraviolet radiation. Why risk safety and efficacy on air cleaner gimmicks when IQAir’s unique design offers proven protection without harmful byproducts?


HyperHEPA® superiority

HyperHEPA superiorityThe Cleanroom Series is designed to give cleanrooms and other critical environments a steady supply of virtually particle-free air. IQAir’s HyperHEPA system is recognized as the most efficient air filtration technology ever designed. And the Cleanroom Series offers more HyperHEPA filtration media than any other IQAir compact stand-alone system, assuring the cleanest air possible, with the largest quantity of the best filtration media available.


Swiss quality

Swiss Made is more than just a label of origin. It is a sign of outstanding quality, uniqueness, superior design, innovation, precision and reliability. In an industry in which most air cleaners don’t meet manufacturers’ claims, IQAir tests and certifies each and every IQAir Swiss qualityair purification system. All manufacturing is done in IQAir’s own state-of-the-art Swiss production facility on the pristine shores of the Lake of Constance. By using the highest quality components, a dedicated team of highly skilled and extensively trained craftsmen and women, and state-of-the-art manufacturing processes refined over 50 years, IQAir is able to build the finest air purifiers in the world.

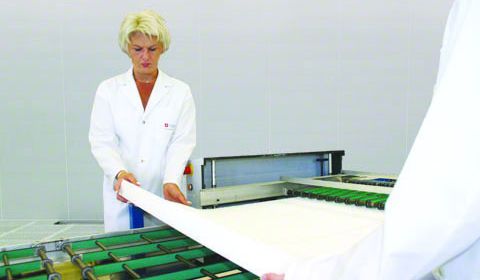

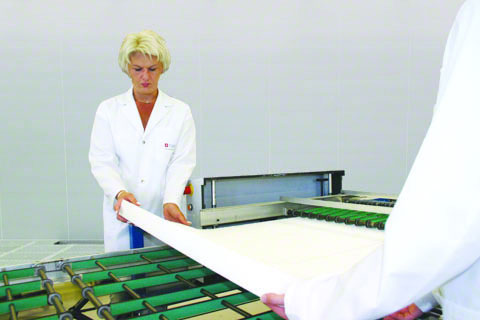

HyperHEPA® filter packs running off the pleating equipment.

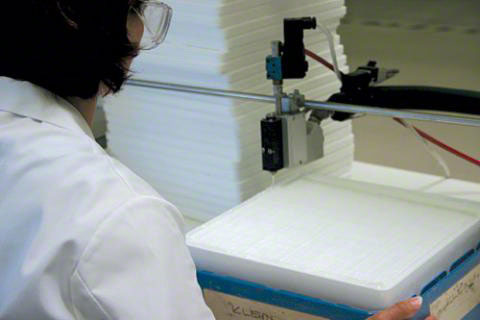

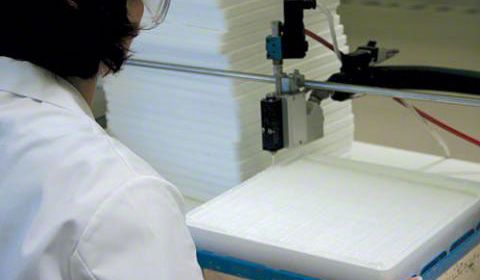

HyperHEPA® filter pack is sealed into filter frame.

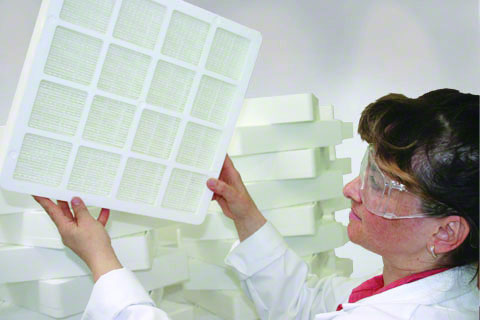

Visual inspection of filter element.
Final packaging of a room air purifier.
Olfactory test of fan motor components as part of research & development work to eliminate varnish odours.

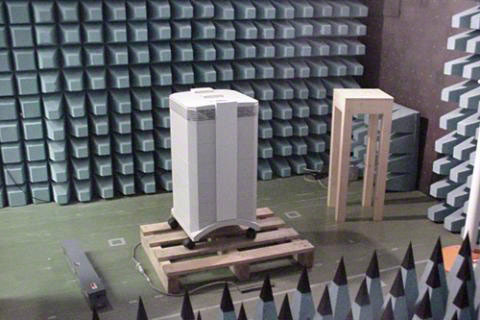

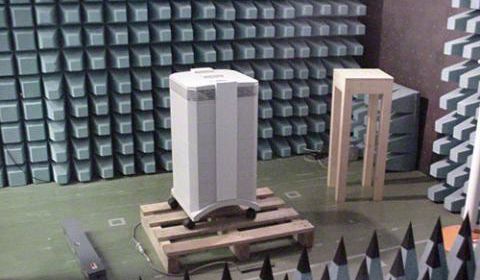

EMC (Electromagnetic Compatibility) testing for medical device safety approval.
Assembly of IQAir® CleanZone® systems.
Prev
Next

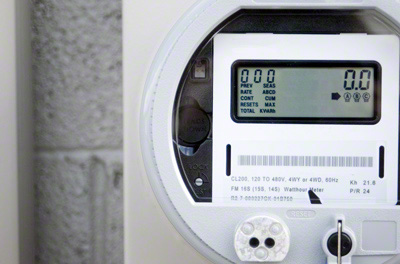

Energy efficient

The IQAir New Edition costs very little to operate. It only requires about as much power as a conventional light bulb. At the very heart of these air purifiers is the ultra-efficient IQAir New Edition fan and its maintenance-free motor. This amazing powerhouse requires as little as 20 watts of power at the lowest speed and up to a maximum of 135 watts at the highest speed. As a result, it costs only pennies per day to operate.

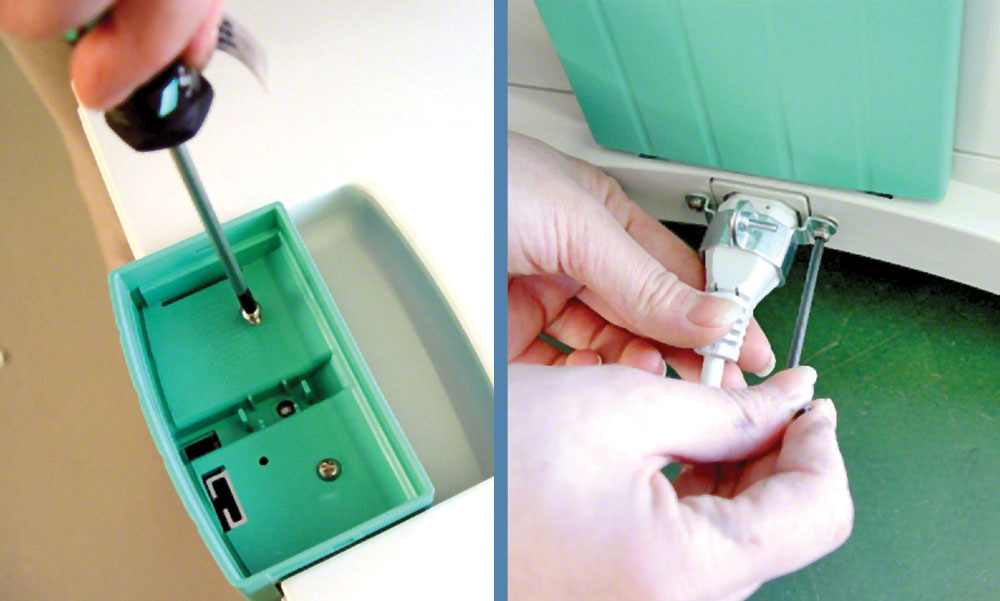

Anti-Tampering design

Anti-Tampering KitAdvanced anti-tampering tools with the IQAir Cleanroom Series help prevent any unauthorized tampering with the system’s filters and power connection. A secure arm-locking fixture prevents unauthorized access to or removal of the system filters. A separate power-cord inlet fixture locks the Cleanroom Series power cord to the system, preventing unauthorized unplugging of the power cord at the base of the system. The anti-tampering kit includes a sturdy, simple tool kit for easy installation of the anti-tampering accessories.


Flexible solutions

Clean research and manufacturing areas, plant control rooms, and other controlled environments sometimes require positive pressure to prevent outside pollutants from entering the area. On the other hand, negative pressure can help contain pollutants in an isolation area. The IQAir Cleanroom H13 can be matched with either the IQAir InFlow™ W125 or OutFlow™ W125 kit to create the exact pressurization needed for any environment. The OutFlow W125 kit will also allow positioning the Cleanroom H13 outside the controlled environment, eliminating the danger of housing leakage.

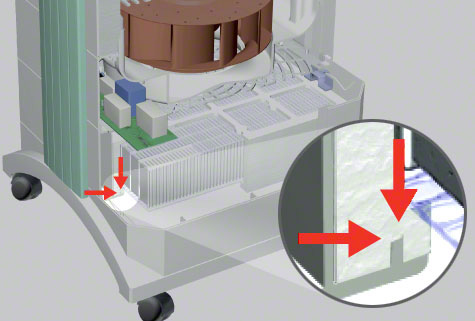

3D UltraSeal™ eliminates leakage

The efficiency stated for most air cleaners is purely theoretical. Internal leakage drastically reduces the actual efficiency of most air cleaners. That’s why IQAir systems feature patented triple sealing technology. First, a unique process ensures that the filter media is 100% sealed in the filter frame. Second, IQAir’s patented 3D UltraSeal ensures perfect knife-edge-in-groove sealing between filter frame and housing. Third, individual seals on each housing module ensure an airtight housing. As a result, IQAir systems have a total system efficiency that is higher than the theoretical efficiency of conventional air cleaners.

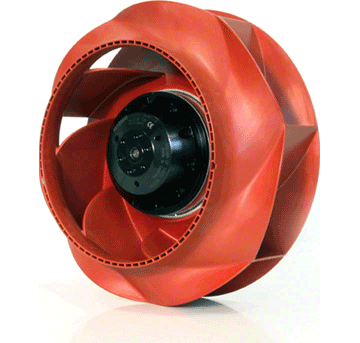

The New Edition Fan

The New Edition features the most powerful fan ever used in a compact room air purifier. That power translates into even better air cleaning results. The new three-dimensionally optimized design now uses state-of-the-art aerodynamics to convert energy into more air and less noise. IQAir systems use the highest quality fan motor available. This fan has an astonishing 1200 m³/h rating. Because each fan is individually balanced and uses steel ball bearings, it outlasts other fans by years. The IQAir New Edition fan is suspended in a separate module that isolates the fan from the housing with eight shock absorbers to further reduce noise.


Sophisticated controls

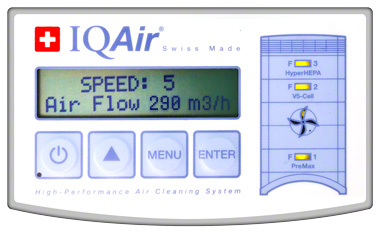

Every IQAir stand-alone air purifier features six fan speeds and streamlined system controls that allow users to easily program automatic operation via a day/night timer. This cuts energy costs and extends filter life by allowing the Cleanroom H13 air purifier to clean the air exactly as needed when needed. Also, the included intelligent filter-life monitor precisely forecasts filter replacement based on actual usage and colour-coded lights indicate when it’s time to change each filter.


Mobility

The built-in guiding handle on top and sturdy casters on the bottom of the Cleanroom H13 system make it simple to roll around the environment to provide high-performance air purification wherever needed. When it’s not needed, the Cleanroom H13 is easily rolled into a utility closet or other handy storage area.

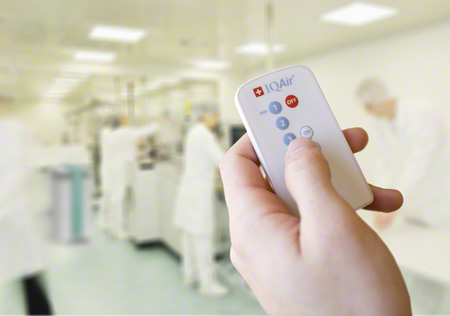

Remote control

A sleek and efficient handheld remote control makes it easy to manage a Cleanroom H13 air purifier from almost anywhere in the critical environment. Lab personnel and others can set the fan speed and even timer controls without touching the system itself. When it’s not in use, the remote control fits handily in the recesses on the top of the system so it can easily be found when needed.


Download Tech Specs Download
General Specifications
Power requirements 220-240 V, 50/60 Hz
Energy consumption, 6 fan speeds* 20, 36, 54, 74, 105, 135 Watt; Standby: <1 Watt
Dimensions H 71 x W 38 x D 41 cm
Weight, system incl. filters 20 kg
Air delivery, incl. filters, 6 fan speeds* 50, 90, 150, 220, 280, 400 m³/h
Sound pressure/power level, 6 fan speeds** LP 22, 33, 41, 47, 52, 57 dB(A); LW 32, 43, 51, 57, 62, 67 dB(A)
Fan motor centrifugal, backward curved, with thermal protector, non-stop use approved
Control panel 4-key touch-pad with 16 character 2-line LCD display
Air intake dual arches at base of system

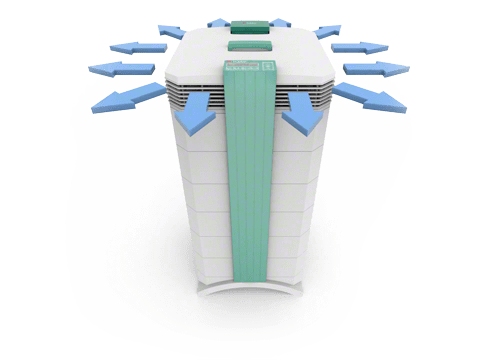

Air outlet 320° EvenFlow™ diffuser
Color of main housing / locking arms light gray / blue
Housing material non-offgasing, impact-resistant, UV-stabilized ABS
Operating temperature / humidity 5° to 40°C / 5% to 95% non-condensing
Electrical safety certification IEC/IECEE (CB-Scheme), CE, SEV, KTL, GOST-R
Performance
Total system efficiency (certified) ≥ 99% for particles ≥ 0.3 μm (individually tested), ≥ 95% at ≥ 0.003 μm
Air delivery (certified) yes (individually tested with all filters installed)
Leak tested yes
Filter Configuration
Pre-filter GC™ HyperHEPA® Pre-Filter H11 (S)
Purpose: control of coarse, fine & ultra-fine dust particles; protection of subsequent filters
Media: non-woven glass microfiber HyperHEPA® filter, non-offgasing separators
Efficiency: ≥ 99% at ≥ 0.3 μm (EN 1822 class H11)
Surface area: 3.0 m²
Average filter life: approx. 15 months (based on average daily usage of 10h on speed 3)****
Gas & odour filter GC™ MultiGas Cartridges
Purpose: control of a wide range or specific chemical substances and odours
Media: 5.4 kg of granular activated carbon & impregnated alumina (AC/4 + IA/4)
Average filter life: approx. 3 years (based on average daily usage of 10h on speed 3)****
Post-filter GC™ Post-Filter Sleeve Set
Purpose: control of fine & ultra-fine particulate matter
Media type: electrostatically charged fiber
Surface area: 0.5 m²
Average filter life: approx. 2 ½ years (based on average daily usage of 10h on speed 3)****
Features
Display languages 4 user-selectable languages: English, French, German, Italian (or Spanish)
Intelligent filter life monitor yes (monitors actual usage of each individual filter), 3 filter life status LEDs
Advanced timer yes (allows programming of operating hours and weekdays)
Advanced fan speed selection yes (allows programming of different fan speeds for 2 different time periods)
Supplied accessories remote control (incl. battery), power cord with plug, deluxe casters, certificate of performance
Optional accessories FlexVac™ & VM FlexVac™ mobile & wall-mounted source capture kits, InFlow™ & OutFlow™positive/negative pressure duct kits, PF40™ coarse dust pre-filter, VMF wall-mount bracket.

Scroll left to view more

* per fan speed measured at 230V, 50Hz; tolerance: ± 10% (± 6 10m³/h); ** tolerance: ± 2 dB(A); *** tolerance: ± 10% **** filter life can vary based on actual usage and pollution levels.

All technical specifications are subject to change without prior notice.
